Auto-reel (Cable Reel)


Auto-reel (Cable Reel) Catalog Auto-reel (Cable Reel) Catalog(PDF 2.1MB)

The auto-reel is used for winding power supply cable, control cable and hydraulic hose of mobile unit like a hoist crane, carriage on wheel or a shield machine. The auto-reel is winds cables, hoses, and wires by power of springs or a motor automatically. The auto-reel winding a cable is called cable a reel, the auto-reel winding a hose is called a hose reel, and the auto-reel winding a wire is called a wire reel.

Originally we used auto-reel as equipment in the company. We start selling it in 1963 as products. Then, in addition to the standard Auto-reel, we began to sell a large-sized one and one with special specification. Today, our products are used in factories, construction sites and public works not only in Japan but also overseas.
Auto-reel (Cable Reel)
Auto-reel (Cable Reel)
Auto-reel (Hose Reel) on The Cart
Auto-reel (Hose Reel) on The Cart

Precision Machine Reel Dpt.
Design Development
Product Development
Design Development


Mechanism of Winding

Spring-loaded auto reel tightened winding spiral spring when the cable or hose is pulled out. it takes up the cable with the use of the repulsive force. Rotation torque applied to the spiral spring by thickness and length of cable and hose will change slightly. If the cable slack torque is weak, you can damage the cable when it is too strong. I have incorporated the best spring spring usage.

Motor type auto reel corresponds thick cable that can not be handled in the spring, the take-up of long cable. Controls the motor so as to be synchronized with the movement of equipment, perform drawer of hose and cable, the take-up.

Manufacturing Auto-reel (Cable Reel)
Manufacturing Auto-reel (Cable Reel)
Electric Auto-reel (Cable Reel)
Electric Auto-reel (Cable Reel)


Energized, The Mechanism of The Flow of Fluid

Current Collector (Slip Ring)

Current Collector (Slip Ring)
Cable reel for auto tells the electricity by holding carbon brush the top of the collector ring to the current collecting part. Fluid will flow through the swivel joint for hose reel auto.

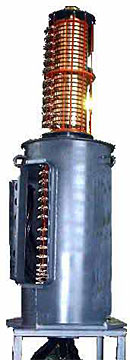

Current Collector (Slip Ring)

Place in the center portion when passing electric rotating body. Electricity travels through the brush and slip ring. The Company will produce a (slip ring) a variety of collector large, multi-core ones, such as for power and control signals from a small size. I hear the order by the (slip ring) single collector. I hear the order by the (slip ring) single collector.


Slip Ring-less Reel (Noiseless Reel)

In the structure that do not use the slip ring, it is noiseless reel. I, it is suitable for applications where hate noise and signal lines.

Slip Ring-less Reel (Noiseless Reel)
Slip Ring-less Reel (Noiseless Reel)
Manufacturing Current Collector (Slip Ring)
Manufacturing Current Collector (Slip Ring)
